CONSTRUCTION LIFT "MINI FLIPPERThe little brother

For smaller formats up to 1300 x 2500 mm.

The Mini Flipper works on the same principle as its big brother. However, there are some differences here: The pick-up table (hinged frame) is shorter and thus the construction lift is just 1450 mm long.
This makes the Mini Flipper only suitable for formats up to 1300 x 2500 mm.

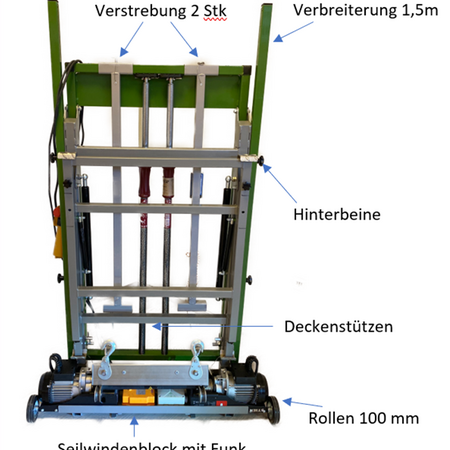

MINI FLIPPER In transport / storage condition: the complete accessories at hand on the machineConstruction lift Flipper assembling

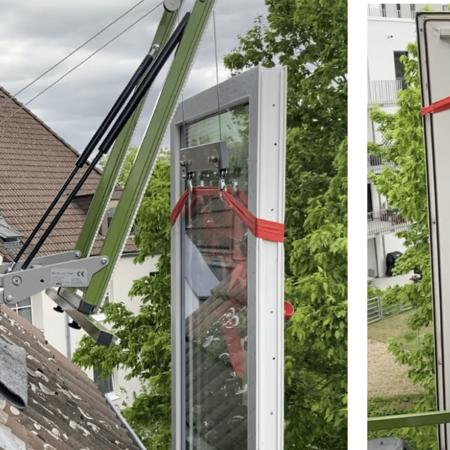

MINI FLIPPER Despite difficult conditions on site, the "Mini Flipper" - version 2021 has successfully passed its test Operation in Cologne
Mini Flipper

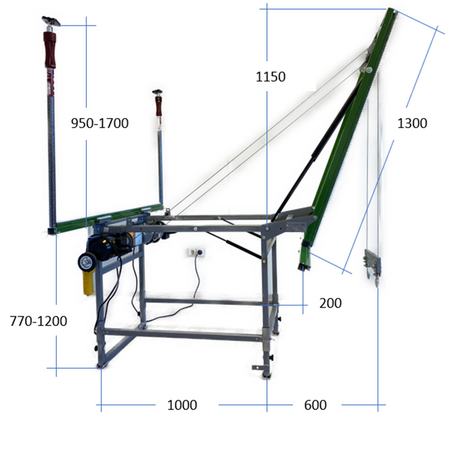

  • Main frame: L x W x H 1450 x 650 x 150 mm | Weight: 30 kg

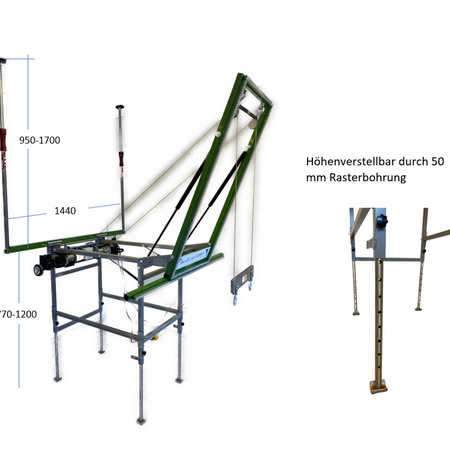

  • rear legs: 770-1200 x 650 mm | weight: 6 kg

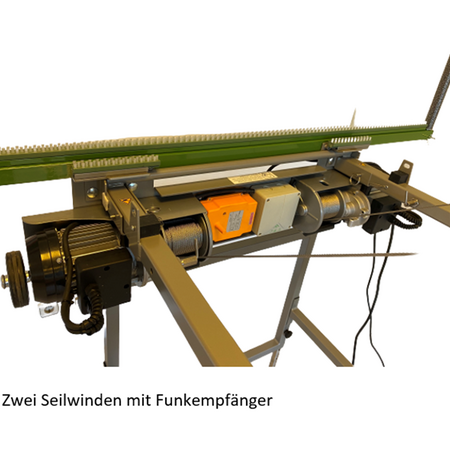

  • winch block: 1000 x 200 x 200 mm | weight: 30 kg
  • 2 pcs widening bars 1500 mm / weight 10 kg
  • 2 pcs ceiling supports 950 - 1700 mm (Piher) / weight 4 kg
  • 2 pcs lifting straps for 1000-2300 mm elements / weight 2 kg
  • 2 pcs bracing 1000 mm / weight 5 kg
  • Total weight with accessories 85 kg
  • Counterweight is not included
  • power supply: 220 V | power: 2 x 450 W
  • Lifting / lowering speed: 10-12 m/min
  • Max. Pull weight: 150 kg
  • Counterweight at full load: 120 kg
  • Cable length: 25 m up to 7th floor
  • Permissible external dimensions of windows, doors, panels, panes that may be lifted:
  • Height x width x depth: 1300 x 2500 x 300 mm
